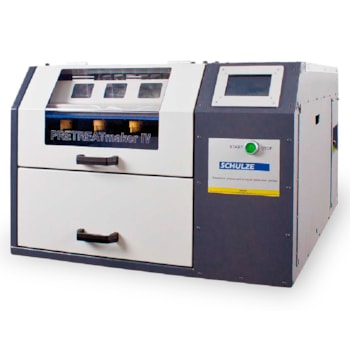

Máquina Pré-tratamento Schulze PRETREATmaker IV

Schulze
Pedir cotação

Máquina de pré-tratamento para DTG para formatos até 40x60cm.



Características Principais:

- 4 bicos de pulverização;

- Área máxima de pulverização: 400X600mm;

- Câmara de pulverização totalmente fechada, sem nebulização;

- Comprimento e largura de pulverização ajustável;

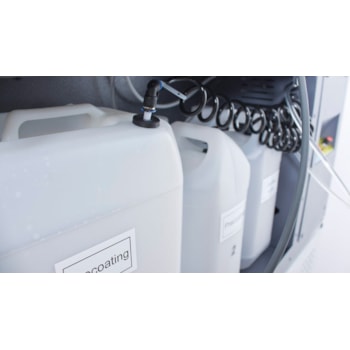

- Sistema de garrafa duplo que permite ter 2 tipos de pré-tratamento;

- Capacidade dos recipientes: 1x 10 litros e 3x 5 litros;

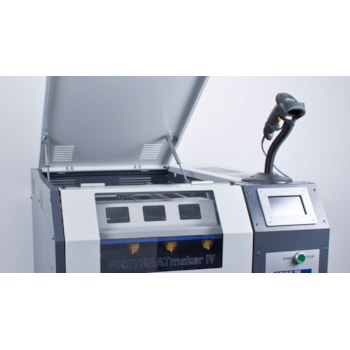

- Sistema opcional de leitor de código de barras;

- Revestimento anti-corrosão;

- Sem necessidade de compressor de ar ou ligação elétrica personalizada.

 Spraying area

 B 40 cm x L 60 cm

 Nozzles

 4

 Width

 yes

 Lenght

 in 2 cm intervals

 Spray way

 uni- / bidirectional

 Spraying method

 Nozzles are moving over the table (inside)

 Nozzle material

 Brass / Stainless steel

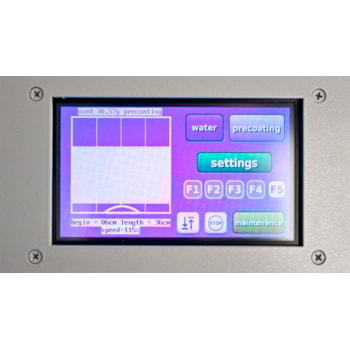

 Touchpad-Display

 yes

 Save position

 5

 Motor

 Step motor

 Defining application quantity

 Speed

 Carriage option (speed)

 25

 Pumps

 2

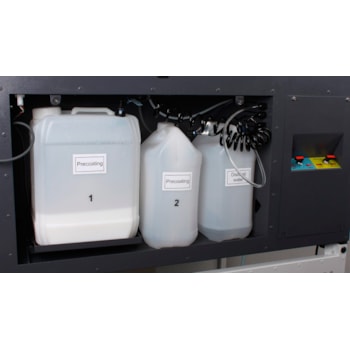

 Tanks

 1x 10 L / 3x 5 L

 Automatic nozzle cleaning

 yes

 Cleaning the nozzle after work (end of day)

 automatic

 Automatic pump cleaning

 yes

 Automatic cleaning with picture in the display

 yes

 Picture maintenance / daily handling

 yes

 High-end filter in the carriage

 yes

 Cleaning extern the nozzle

 yes

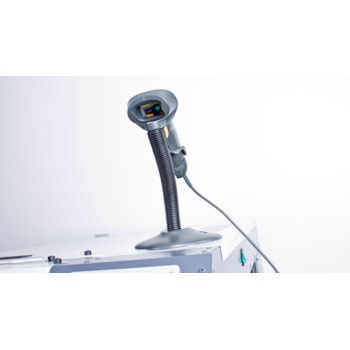

 Barcode interface

 yes

 Scale

 yes

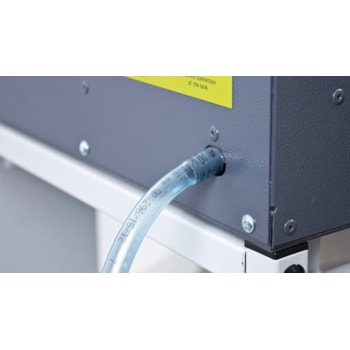

 Waste tank

 yes

 Multilingual menu

 yes

 Metric/inch

 yes

 Ergonomic reformed drawer

 yes

 Superuser function

 yes

 Dimension

 T 90 x B 72 x H 48 cm

 Dimension transport

 T 95 x B 80 x H 61 cm

 Weight

 70 kg

 Weight transport

 90 kg

 Connection

 220/230 oder 110/120 VAC

 Consumption

 150 W

 Power input

 2 A

 Main fuse

 12 A

 Operating pressure precoating pump

 approx. 5,5 bar

 Operating pressure water pump

 approx. 7 bar

 Additional characteristics

 zinc- and powder-coated housing



PRETREATmaker IV machine clean with PRETREATcleaner
PRETREATmaker IV nozzle clean with PRETREATcleaner
PRETREATmaker cleaning tool
