Monitor Eizo ColorEdge CG2400SV (24") HDR
Principais Características:

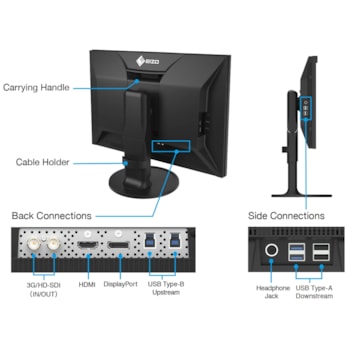

Advanced Connectivity

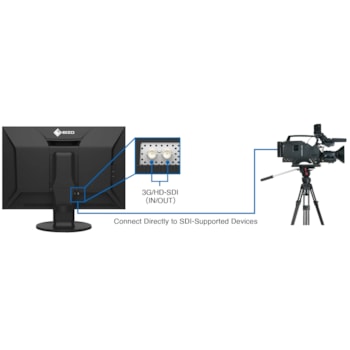

- - SDI Connectivity
- - Flexible Connection, Sleek Cabinet Design
- - Headphone Jack for Direct Audio Output
Color Precision
- - Industry Standard Color Reproduction with Broadcast and Cinema Presets
- - 10-Bit Simultaneous Display
- - 3D LUT for Accurate Color Display
- - Built-In Sensor to Automate Your Workflow
- - ColorNavigator 7 Color Management Software
- - ColorNavigator Network Quality Control Software
Features for Previewing and Editing
- - HDR Gamma Curves
- - True Black Display
- - Accurately Preview Log Footage
- - Sync Signal
- - Pixel Inspection
- - Markers for Information Overlay
- - Check PQ Contents at Any Brightness Level
- - Luminance Warning
- - BT.709 Out-of-Gamut Warning
Stable Image Display
- - Adjusted at the Factory for Smooth Color Gradations
- - Uniformity Across the Screen
- - Stable Display Using Industry-First AI
- - Stable Color in Just 3 Minutes
- - Verified Accuracy with Factory Report
Design and Comfort
- - Noiseless, Fanless Operation
- - Light-Shielding Hood
- - Ergonomic Stand
Commitment to Quality
- - 5-Year Manufacturer's Warranty: ColorEdge monitors are backed by a manufacturer's 5-year warranty that covers all components including the LCD panel*. EIZO manufactures its products at its own factories to allow close control over production quality and ensure each monitor is built to last.
- - Zero Bright Pixels: EIZO guarantees this product will be free from bright sub-pixels for six months from the purchase date.
Sustainable Future
- - Low Environmental Impact Materials
- - Eco-Conscious Packaging
| Model Variations | CG2400SV-BK |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | Wide-Gamut LED |
| Size | 24.1" (61.1 cm) |
| Native Resolution | 1920 x 1200 (16:10 aspect ratio) |
| Viewable Image Size (H x V) | 518.4 x 324.0 mm |
| Pixel Pitch (H x V) | 0.270 x 0.270 mm |
| Pixel Density | 94 ppi |
| Display Colors | 1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT) |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 400 cd/m2 |
| Contrast Ratio (typical) | 1800:1 |
| Response Time (typical) | 11 ms (gray-to-gray) |
| Color Gamut (typical) | Adobe RGB: 99%, DCI-P3: 98% |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3), BNC (3G/HD-SDI) |
| Output Terminals | BNC (3G/HD-SDI, through-out (active)) |
| Digital Scanning Frequency (H / V) | DisplayPort: 26 - 76 kHz / 23 - 61 Hz HDMI: 15 - 76 kHz / 23 - 61 Hz |
| USB | |
| Upstream | USB 5Gbps: Type-B x 2 |
| Downstream | USB 5Gbps: Type-A x 2 USB 2.0: Type-A x 2 |
| Audio | |
| Input Terminals | DisplayPort, HDMI, BNC (SDI) |
| Output Terminals | Headphones (Stereo mini jack) |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 18 W |
| Maximum Power Consumption | 64 W |
| Power Save Mode | 0.5 W or less |
| Built-in Calibration Sensor | Yes |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | User, BT.709, BT.2020, DCI-P3, PQ_DCI-P3, PQ_BT.2100, HLG_BT.2100, sRGB, Calibration (CAL), SYNC_SIGNAL |
| HDR Gamma | HLG, PQ curve |
| OSD Languages | English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese |
| Others | Color Adjustment, PQ Option, HLG Option, SelfCalibration, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Picture Expansion, DCI 2K Cropping, BT.709 Gamut warning, Luminance Warning, Marker, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority, Pixel Inspection |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 554.4 x 408.1 - 563.1 x 245 mm |
| Dimensions (Without Stand, W x H x D) | 554.4 x 374.1 x 70.2 mm |
| Dimensions (Landscape with Hood, W x H x D) | 564.4 x 413.1 - 568.1 x 330 mm |
| Net Weight | 8.5 kg |
| Net Weight (Without Stand) | 5.5 kg |
| Net Weight (With Hood) | 9.0 kg |
| Height Adjustment Range | 155 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 344° |
| Pivot | 90° |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 0 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, UKCA, TUV/GS, cTUVus, FCC-A, CAN ICES (A), VCCI-A, RCM, RoHS, WEEE, TUV/Ergonomics |
| Proprietary Software | |
| Color Management Software ColorNavigator 7 | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DisplayPort (2 m), HDMI (2 m) |
| Others | AC power cord, USB Type-A - USB Type-B cable (2 m), Setup guide, Factory Report, Monitor hood, Warranty card |
| Warranty | 5 Years 2 5 Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later. |
| Dimension Drawing |
- 2 With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
