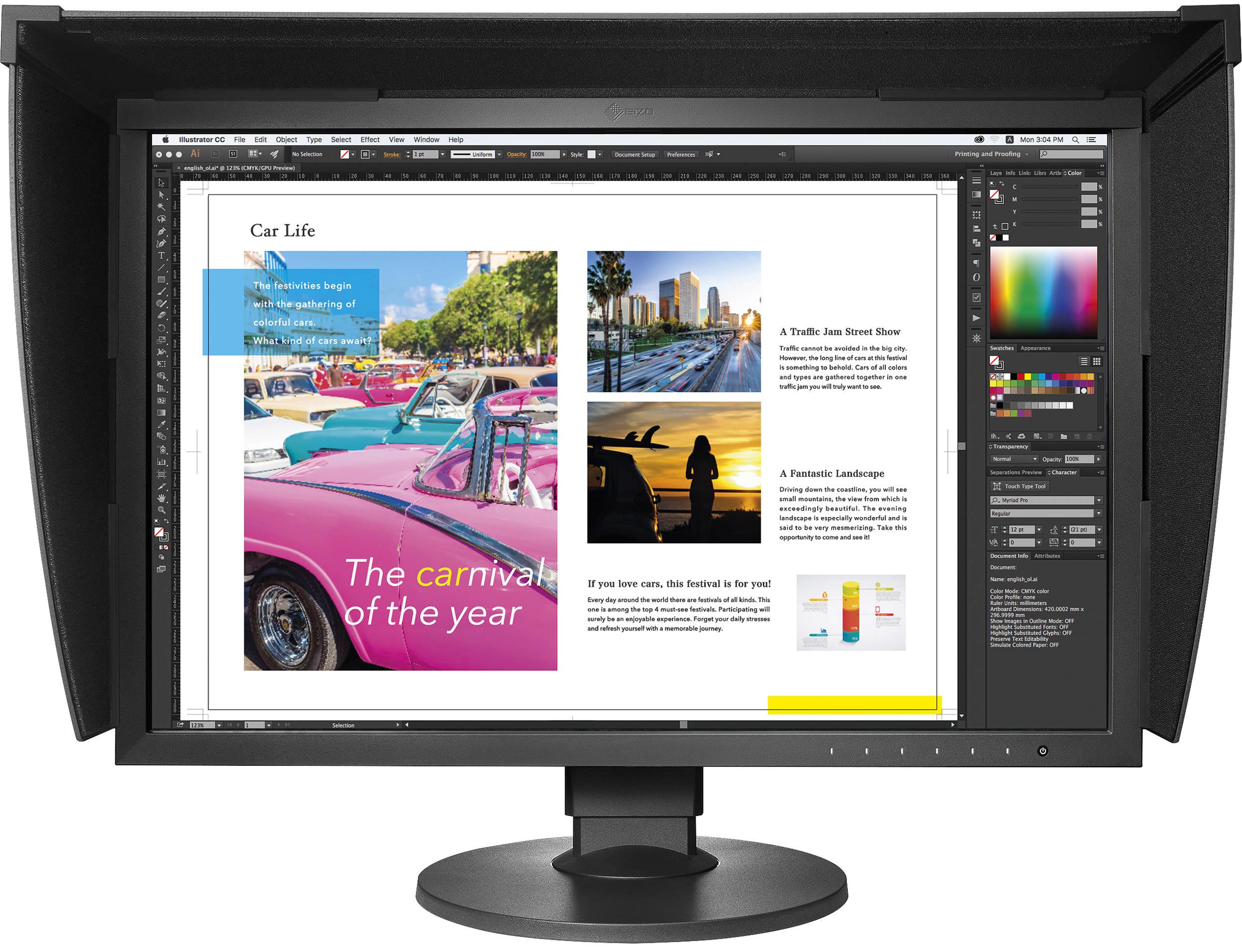

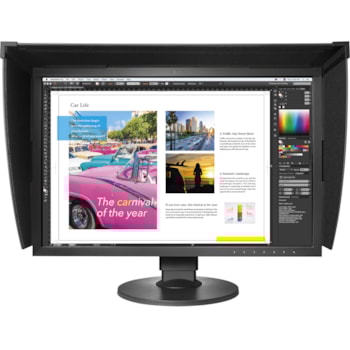

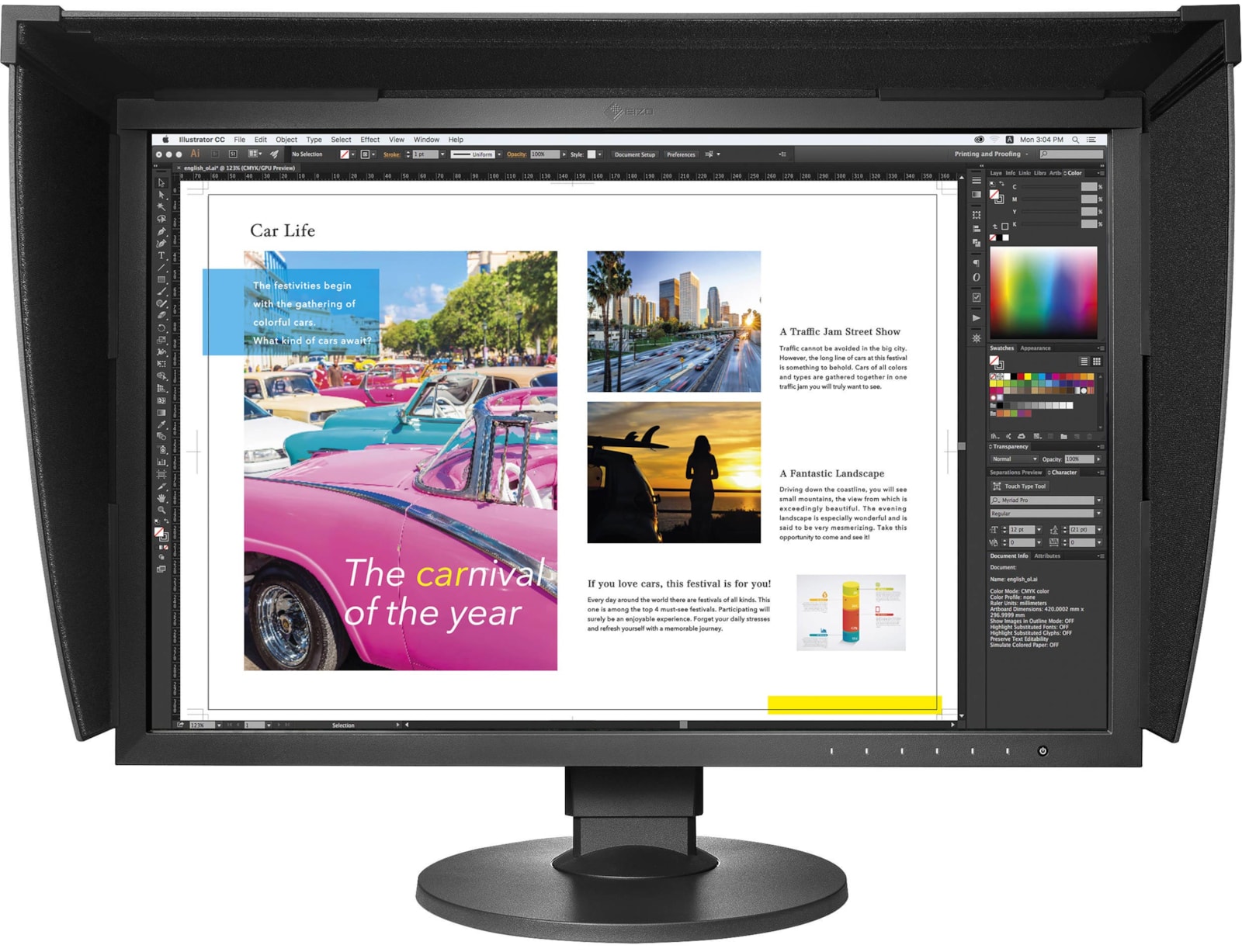

Monitor Eizo ColorEdge CG2420 (24")
Principais Características:
Gestão de Cores Simples e Precisa:
- - Sensor incorporado para automatizar o fluxo de trabalho e garantir cores consistentes
- - Software de gestão de cores ColorNavigator 7
- - Ferramenta de gestão de cores em rede com ColorNavigator Network
Recursos para Trabalho Criativo:
- - Cores vibrantes e fiéis aos padrões da indústria
- - Exibição simultânea de 10 bits para uma profundidade cromática superior
- - Monitor ajustado na fábrica para gradações suaves de cores
- - Tecnologia avançada ColorEdge para qualidade de imagem incomparável
- - Cor estável em apenas 3 minutos
- - Uniformidade garantida em todo o ecrã
Design de Fácil Utilização:
- - Molduras finas para um design elegante
- - Botões eletrostáticos sem costura
- - Alça de transporte embutida
- - Portas USB de fácil acesso
Recursos para Conforto e Facilidade:
- - Painel anti-reflexo para minimizar distrações
- - Diversas opções de ligação
- - Viseira de proteção contra luz ambiente
- - Conversão I/P para exibição sem oscilações
- - Suporte ergonómico ajustável para maior conforto
Compromisso com a Qualidade:
- - Garantia de 5 anos do fabricante
- - Política de zero pixels brilhantes
- - Consumo de zero watts quando desligado
- - Garantia de brilho e cor ao longo do tempo
- - Certificado para qualidade e desempenho
| Panel | |
| Type | IPS |
| Backlight | Wide-Gamut LED |
| Size | 24.1" / 61.1 cm |
| Native Resolution | 1920 x 1200 (16:10 aspect ratio) |
| Viewable Image Size (H x V) | 518.4 x 324.0 mm |
| Pixel Pitch | 0.270 x 0.270 mm |
| Pixel Density | 94ppi |
| Grayscale Tones | DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand tones) DVI: 256 tones (a palette of 65 thousand tones) |
| Display Colors | DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion DVI: 16.77 million from a palette of 278 trillion |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 400 cd/m2 |
| Recommended Brightness for Calibration | 120 cd/m2 or less |
| Contrast Ratio (typical) | 1500:1 |
| Response Time (typical) | 10 ms (Gray-to-gray) |
| Color Gamut (typical) | Adobe RGB: 99%, DCI-P3: 98% |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP 1.3), HDMI (Deep Color, HDCP 1.4), DVI-D (HDCP 1.4) |
| Digital Scanning Frequency (H / V) | DisplayPort, DVI: 26 - 78 kHz, 24 - 61 Hz HDMI: 15 - 78 kHz, 24 - 61 Hz |
| USB | |
| Upstream | USB 3.1 Gen 1: Type-B |
| Downstream | USB 3.1 Gen 1: Type-A x 3 (Battery Charging 10.5 W max. x1) |
| Power | |
| Power Requirements | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 20W |
| Maximum Power Consumption | 79W |
| Power Save Mode | 0.7W or less |
| Standby Mode | 0.6W or less |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | Color Mode (Custom, Adobe RGB, sRGB, Calibration) |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Others | Color Adjustment (Brightness, Temperature, Gamma, Color Gamut, Hue, Saturation, Clipping, Gain, Independent 6-Color Control, Reset), Picture Expansion (Auto, Full Screen, Aspect Ratio, Dot by Dot), Input Color Format, Input Range, Noise Reduction, Auto Iuput Detection, Menu Rotation, USB CHARGE Port, Power Save, Indicatior, Beep, Input Skip, Mode Skip, Signal Info, Monitor Info, Key Lock, DP Power Save, DUE Priority, Signal Format, Monitor Reset, I/P Conversion |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 554.4 x 396 - 551 x 245 mm |
| Dimensions (Portrait, W x H x D) | 362 x 565.4 - 647.2 x 245 mm |
| Dimensions (Without Stand, W x H x D) | 554.4 x 362 x 64 mm |
| Net Weight | 7.8 kg / 17.2 lbs |
| Net Weight (Without Stand) | 5.0 kg / 11.0 lbs |
| Net Weight (With Hood) | 8.5 kg / 18.7 lbs |
| Height Adjustment Range | 155 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 344° |
| Pivot | 90° |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 0 - 35 °C |
| Operating Humidity (R.H., non condensing) | 20 - 80 % |
Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics, TUV/Color Accuracy (Quick Stability), FograCert Softproofing System (class A) |
| Dedicated Software | |
| Easy Screen-to-Print Color Matching Tool Quick Color Match | Supported |
| Monitor Management Software ColorNavigator NX | Supported |
| Proprietary Software | |
| Color Mangement Software ColorNavigator 7 | Supported |
| Color Mangement Software ColorNavigator 6 | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DisplayPort (2 m), HDMI (2 m) |
| Others | AC power cord, USB cable, Setup guide, EIZO LCD Utility Disk (ColorNavigator software, PDF user's manual), Adjustment certificate, ScreenCleaner, Monitor hood,Quick reference, Warranty card |
| Warranty | Five Years 2 5 Zero bright sub-pixels for six months from date of purchase |
- 2 With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
