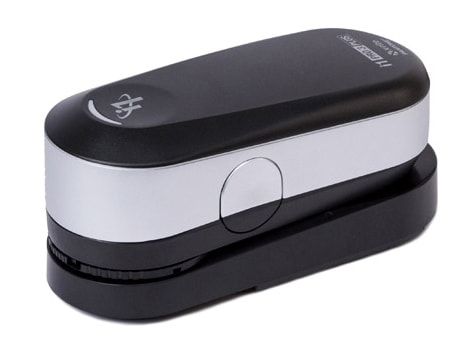

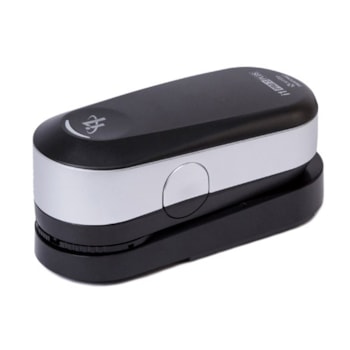

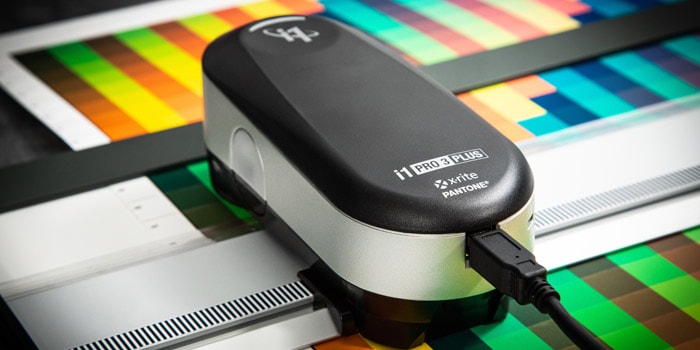

Espectrofotometro X-Rite i1Basic Pro 3 Plus
Projetado para profissionais que trabalham com imagens e dependem de cores precisas em suas telas e projetores, que querem controlar e verificar a qualidade digital e impressa e que precisam obter a medição de cores chapadas, o i1Basic Pro 3 Plus é a solução ideal.
Com o i1Basic Pro 3 Plus é possível criar, de forma rápida e fácil, perfis personalizados de monitor e projetor, que asseguram que as cores que você vê são reais, verificar a qualidade de provas digitais e de impressão com as ferramentas de Garantia de Qualidade (QA) integradas e também capturar e gerenciar cores especiais.
Benefícios:

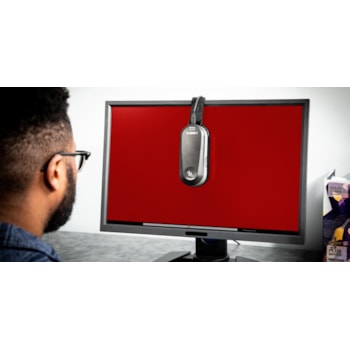

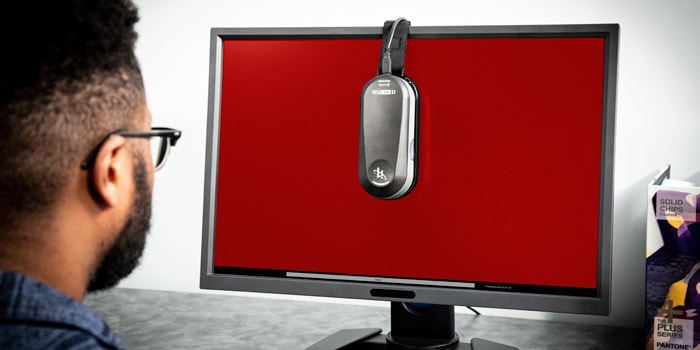

- A grande abertura (8 mm) com suporte para altos níveis de brilho (até 5000 nits) melhora a medição emissiva, resultando na melhor calibração e perfil possíveis, de monitores e projetores.
- Calibra e combina vários monitores, incluindo até quatro monitores conectados a um único computador, bem como ilimitado número de monitores conectados em diferentes computadores para visualização de cores consistente.
- Suporte completo para os mais recentes padrões de vídeo, incluindo os padrões de vídeo NTSC, ITU-R-Rec.BT.709 e PAL SECAM.

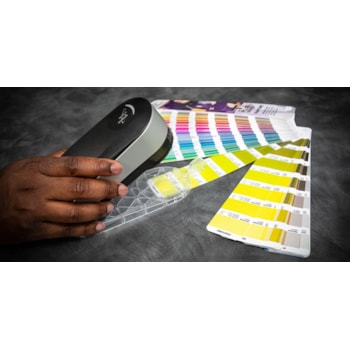

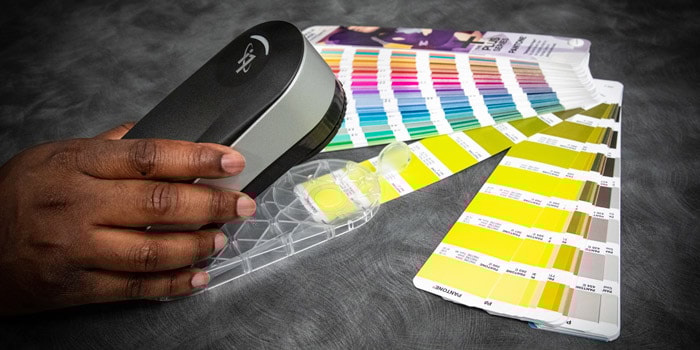

- O software PANTONE Color Manager permite a captura e a gestão precisa de cores exatas e ajuda os utilizadores a criar paletas das melhores cores PANTONE correspondentes que são extraídas automaticamente das suas próprias imagens.
- Fácil atualização para o software i1Publish para adicionar funcionalidade completa de impressora de perfis de impressora (RGB, CMYK, CMYK + quatro) à funcionalidade de controle de perfil e qualidade e recursos de câmera.
- Para aumentar a automatização, use o leitor de mãos livres opcional i1iO automático ou adicione um leitor de gráficos automático i1iSis 2 para criar perfis de impressora.
Especificações Técnicas:
Aperture | Measurement aperture: 8 mm (0.31”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed) |
Available Disk Space | 2GB |
Calibration | Manual on external ceramic white reference (included) |
Communication Interface | USB 1.1 |
Connectivity | Powered USB port |
Dimensions (length, width, height) | i1Pro device: 162 mm x 69 mm x 64 mm |
Display Resolution | 1024x768 pixels or higher
|
Experience Level | Intermediate to Advanced |
Humidity | 30 to 85% RH (non-condensing)
|
Illumination Spot Size | 12 mm |
Inter-Instrument Agreement | 0.3 ∆E00* average, 0.8 ∆E00* max. (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º)) |
Internet Connection |
Required for software install, download and automatic update
|
Languages Supported | Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish |
Light Source | i1Pro3 Plus LED Illumination (including UV) |
Macintosh | MacOS X 10.11x, 10.12x or 10.13x (with latest upgrades installed) |
Measurement Conditions | • M0 - UV included - ISO 13655:2017 • M1 - D50 - ISO 13655:2017 • M2 - UV excluded Filter - ISO 13655:2017 • M3 - Polarization - ISO 13655:2017 |

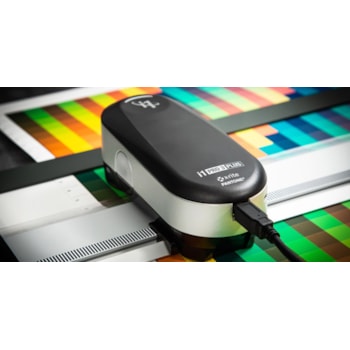

Measurement Frequency in Scanning Mode | 400 measurements per second |
Measurement Geometry | 45°:0° ring illumination optics, ISO 13655:2017 |
Measurement Spot | 8mm |
Media Thickness | 1mm or less |
Memory | 2GB Minimum |
Number of Displays Supported per Workstation | Up to 4
|
Operating Temperature Range | 10°C to 35°C |
Patch Size |
Minimal Patch Size in Scanning Mode: 16 x 16 mm (0.63” x 0.63”) (Width x Height) with sensor ruler 20 x 16 mm (0.79” x 0.63”) (Width x Height) without sensor ruler
|
Photometric Range | 10nm; Sampling interval 3.5nm
|
Processor | MAC: Intel® Core 2 Duo CPU or better; WINDOWS: Intel® Core 2 Duo or AMD Athlon™ XP or better |
Scan Length | Maximum 515mm (20.28") |
Scanner Target Support | Yes |
Scanning Capability | Yes |
Security | User must have Administrator rights to install and uninstall the application |
Short Term Repeatability - White | Reflectance: 0.1 ∆E94* (D50,2°, mean of 10 measurements every 3 seconds on white) |
Spectral Analyzer | i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array |
Spectral Range | 380 - 730 nm |
Spectral Reporting | 380 ... 730 nm in 10 nm steps |
Storage Temperature Range | -20° to 50°C |
Supported Profile Format | ICC version 2, version 4.3, & iccMax |
User Experience | Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results |
Video Card | MAC: Latest drivers for video card installed WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded |
Warranty | Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use. |
Weight | i1Pro device: 285 g |

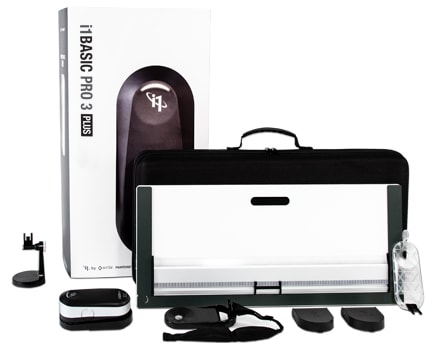

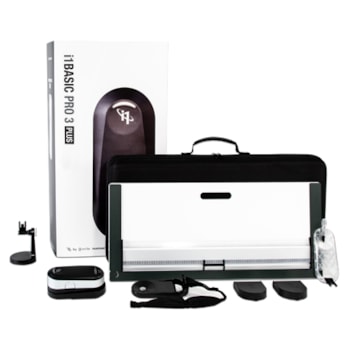

What's Included? | i1Pro 3 Plus spectrophotometer (measurement device), calibration plate, polarizing filter, ambient light measurement head, monitor holder, positioning target, XL scanning ruler, XL backer board, USB cable. i1Profiler v3.x software for monitor profiling plus QA for monitors and printers, PANTONE Color Manager software.
|
Windows | Windows 7, 8, 8.1, 10 (with latest Service Pack installed) |
